Afmetingen
Informatie over productveiligheid

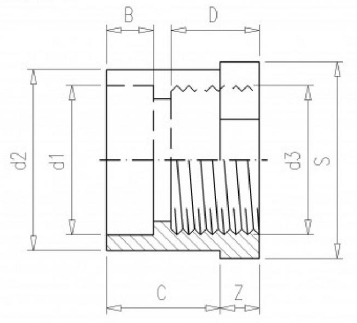

(d2) Buitendiameter links	(d3) Binnendiameter rechts	Z	C	S	D
25 mm	1/2"	8 mm	19 mm	27 mm	17 mm
32 mm	1/2"	8 mm	22 mm	36 mm	17 mm
32 mm	3/4"	8 mm	22 mm	36 mm	19 mm
40 mm	1/2"	11 mm	26 mm	46 mm	17 mm
40 mm	3/4"	11 mm	26 mm	46 mm	19 mm
40 mm	1"	11 mm	26 mm	46 mm	21 mm
50 mm	1"	12 mm	31 mm	55 mm	21 mm
50 mm	1 1/4"	12 mm	31 mm	55 mm	23 mm
63 mm	1 1/2"	13 mm	38 mm	65 mm	23 mm
75 mm	2"	13 mm	44 mm	80 mm	29 mm
